MISTAWAY

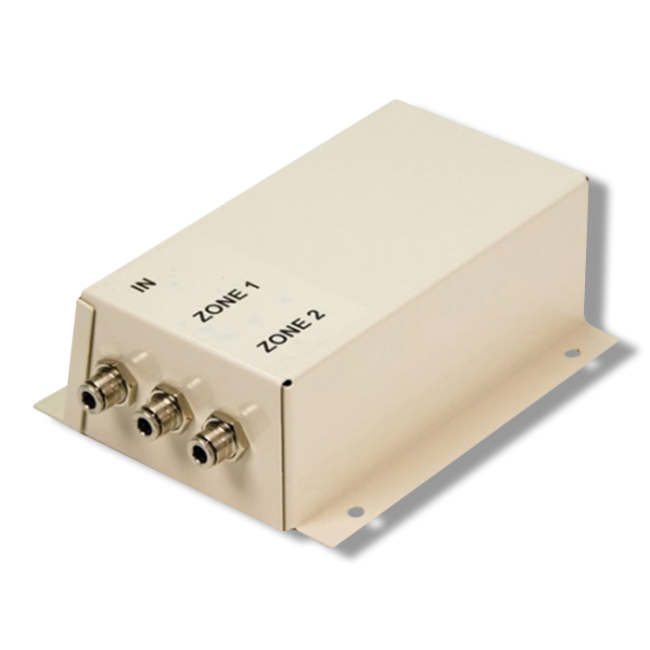

MistAway Zone Kit Gen III
MistAway Zone Kit Gen III is a specialty part specifically made for the Gen III+ to allow for double the nozzles to be installed in a treatment area. Easy to install part.
As low as
$302.17
Only %1 left
SKU
MistAway Zone Kit Gen III Product Page
Min : 302.17 - Max : 302.17
+
The MistAway Zone Kit Gen III (Part Number 20073) is a specialty part manufactured by MistAway and enables you Mosquito Misting System unit to mist through two nozzle circuits (zone 1 and zone 2). The two zones can be set to the same misting schedule or two different schedules and can be programmed by the remote control. This part is easy to install and can make it so your system supports two misting zones of 55-65 nozzles each.
Tools Needed
To install the MistAway Zone Kit Gen III, you may need a crescent wrench and a screwdriver for disassembly and reassembly.
How to Use

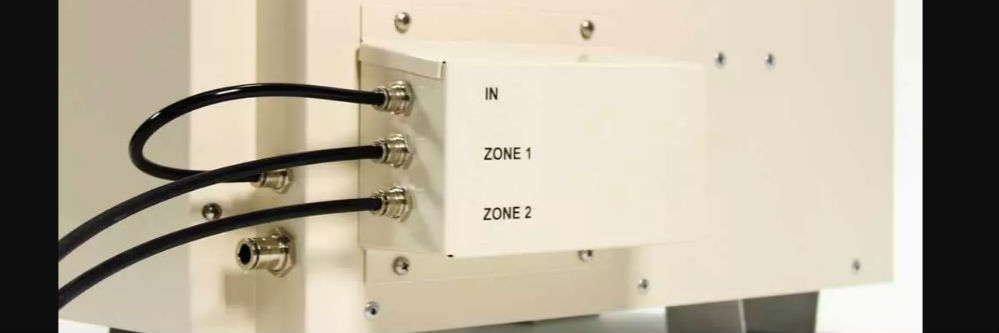

- Step 1: Once the Unit is powered down, remove the black plastic plug from access port and push Zone Kit connector and lead through port then mount the Zone Kit to the back of the unit.
- Step 2: Begin connecting tubing to the ports labeled in and "zone 1" and "zone 2"
- Step 3: Connect the zone kit to the 4-pin connector under the controller (after lifting it) labeled "ZONE Control". Reassemble, power the unit on and program the system accordingly (check the instructions for details.)
Where to Use
The MistAway Zone Kit Gen III is an optionally item that is mounted on the back side of the unit.
When to Use
Input the Zone Kit when you prefer to double the amount of nozzles to use for your misting system to get better coverage of an area.
Safety Information
The product is safe to use and install when done so according to MistAway directions.
Special Considerations
This is an optional item that does not need to be installed unless you want to double the amount of nozzles for your system.
| Restricted Use | No |
|---|---|
| Availability | Online |
| Keith's Pro Tip | "The zone kit makes it easy to double the amount of nozzles for your mosquito misting system. Just remember that once installed you will need to program your system to properly implement the Kit and the zones." |
| Time to Kill | MistAway Zone Kit Gen III does not eliminate pests on its own. |
| Chemical Type | Equipment |
| Formulation | Parts/Unit |
| Application Methods | Automatic Misting |
| Product Drawbacks | It's optional. You don't really need it unless you want to up the amount of nozzles you have to double the amount. |
| Active Ingredient | N/A |
| Application Equipment | Misting System |
| Mix Rate | ready to use. |
| Use Sites | Outdoors |
| Yield | MistAway Zone Kit Gen III fits one unit. |
| Shelf Life | MistAway Zone Kit Gen lll will not expire when stored in a clean location. |
| Children or pets? | No |
| Property Characteristics | None |
| Availability | Online |
| Restricted Use | No |
| Brand | MISTAWAY |
| Keith's Pro Tips | "The zone kit makes it easy to double the amount of nozzles for your mosquito misting system. Just remember that once installed you will need to program your system to properly implement the Kit and the zones." |
| Product Drawbacks | It's optional. You don't really need it unless you want to up the amount of nozzles you have to double the amount. |
| Target Pests | Mosquitoes |
| Application Equipment | Misting System |
| Application Methods | Automatic Misting |
| Active Ingredient | N/A |
| Product Type | Equipment |
| Formulation | Parts/Unit |
| Application Rate | ready to use. |
| Shelf Life | MistAway Zone Kit Gen lll will not expire when stored in a clean location. |
| Yield | MistAway Zone Kit Gen III fits one unit. |
| Use Sites | Outdoors |
| Time to Kill | MistAway Zone Kit Gen III does not eliminate pests on its own. |
