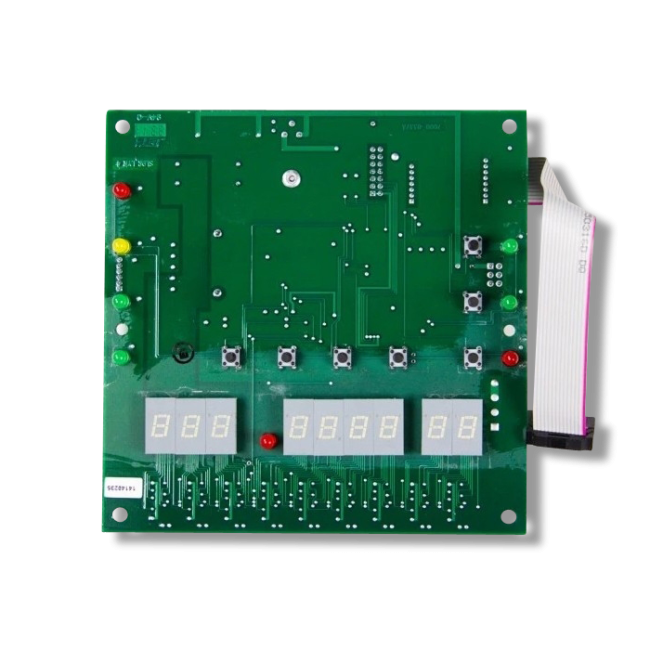

Mistaway Gen II HMI Board

The MistAway HMI Board is a replacement part for the MistAway Gen II Mosquito Misting System. HMI stands for Human Machine Interface and is an important component to allow the mosquito misting system to be controlled and functional by the user. If your MistAway controller is not responding well or completely stops working, replacing the HMI board may help to restore the system back to its original condition.

Tools Needed

To install the HMI Board, you will need the MistAway Gen II Mosquito Misting System and a screwdriver to open up the system and access the interior controller of the unit.

How to Use

• Step 1: Use the screwdriver to undo the controller and reposition the shroud so you can get into the system.
• Step 2: Unplug the Gen II controller from the misting system by disconnecting all the wiring harnesses and cables so you can freely pull it away from the system.
• Step 3: Locate and remove for back screws to get into the interior of the controller's control module. Pull apart the top and bottom portion of the module then locate and push tab in to release the display harness and put aside the face plate.
• Step 4: With the controller on a flat surface, locate and remove 4 stainless screws to release the HMI board. Carefully remove the board and replace with the new HMI board, tightly screwing it in place and snapping the ribbon portion into the port.
• Step 4: Reassemble the controller and place it back in its proper place in the misting unit. Once the unit is put back together, test the system to make sure it is working properly.

Where to Use

The Mistaway Gen II HMI Board is part of the front circuit board assembly of the Mistaway Gen II Mosquito Misting System Unit.

When to Use

Replace the HMI Board when there is an issue with the misting system controller and it is not functioning properly or is not responding at all.

Safety Information

This product is safe and easy to install. Make sure the MistAway Gen II unit is powered off completely before installing the HMI Board.

Special Considerations

The HMI Board is only for the Gen II Unit and will not work with other Gen units like the Gen 1.3 and III+.
