MARUYAMA

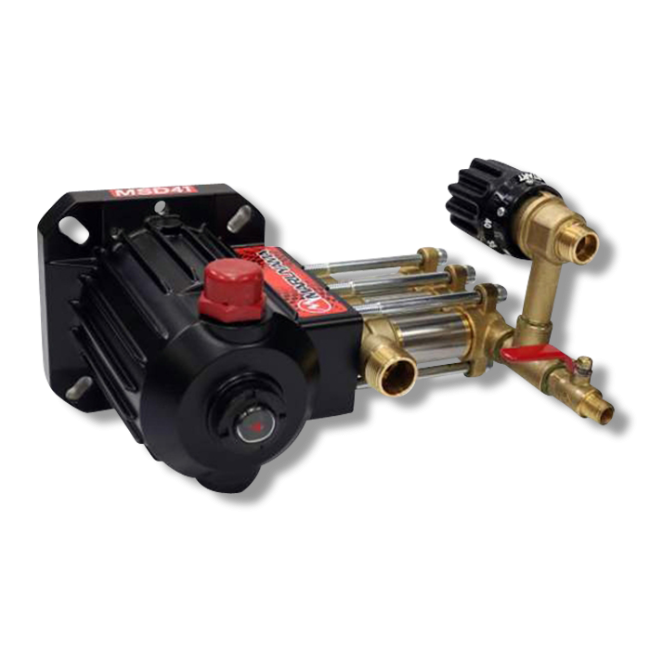

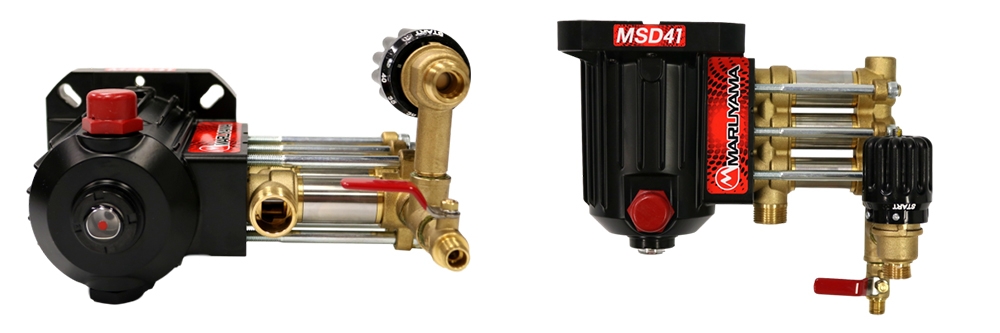

Maruyama MSD41 Piston Pump
Maruyama MSD41 Piston Pump 3/4 direct drive piston pump that can be used on Solutions custom spray rigs. It is a durable, high-performance replacement part that will help your spraying rig work smoothly.
As low as
$410.28
Only %1 left
SKU
Maruyama MSD41 Piston Pump Product Page
Min : 410.28 - Max : 410.28
+
Price as of
05/26/26
05/26/26
Price Transparency
See how our pricing compares to other online retailers for this item.
The MSD41 Piston Pump is manufactured by Maruyama and is a 3/4 direct drive piston pump that delivers a consistent and reliable application. The MSD41 piston pump is an essential component used in our custom spraying rigs. It is constructed of chemical-resistant aluminum with modular design to ensure a simple and worry-free repair and maintenance.
The pump comes equipped with a regulator and can pump out 8 gallons a minute at 570 pounds of pressure. It also features a Uniflow design to ensure that fluid only moves in one direction, which makes it so there is low pulsation and vibration while the MSD41 is being operated. If your piston pump has been compromised, this replacement Maruyama MSD41 piston pump will get your spraying rig back working the way that it should.
Tools Needed
There will be tools necessary to install the Maruyama MSD41 piston pump onto your spraying rig. Refer to the instructions that come with the part to see what you need.
How to Use
- Step 1: Following the manufacturer instructions, remove the old piston pump from your spraying rig and replace it with the Maruyama MSD41 Piston Pump. Tighten to secure.
- Step 2: Fill the crankcase of the MSD41 piston pump with lubricating oil up to the center level of the gauge and feed a few drops of oil into the 3 holes of the crankcase. You will then need to attach the strainer for the hose coupling and insert the suction hose and overflow hose into the chemical tank.
- Step 3: Make sure the pressure regulator is set to START and then close the valve before starting the engine. When you're ready to spray, regulate the pressure to your desired output and open the valves.
- Step 4: When you are done spraying, close the valve and turn the pressure regulator knob back to the START position.
Where to Use
This piston pump is a replacement part specifically for pesticide spraying rigs.
When to Use
Use the piston pump as part of a pesticide skid sprayer for tree spraying, turf application, herbicide application, termite work and perimeter spraying around structures.
Safety Information
Always use the proper PPE when operating or performing maintenance to the piston pump (safety mask, gloves, protective eyewear).
Special Considerations
The Maruyama MSD41 Piston Pump is a specialized part of our custom pesticide spray rigs. Refer to the pump's manual for detailed operating procedures and maintenance information.
The MSD41 Piston Pump requires an engine to power it as it will not function on its own. A 3.6 hp (GX160 gas engine) is required.
| Restricted Use | No |
|---|---|
| Availability | Online |
| Keith's Pro Tip | "To keep your Maruyama MSD41 piston pump performing well, you will need to set a routine maintenance schedule and regularly check the oil levels. This is a must for the longevity of the pump." |
| Time to Kill | Maruyama MSD41 Piston Pump does not eliminate pests and works instantly once attached. |
| Chemical Type | Equipment |
| Formulation | Parts/Unit |
| Application Methods | Broadcast Spray |
| Product Drawbacks | Routine maintenance is a must for continued performance of the MSD41. You will have to regularly check the oil level on the pump. Also the pump has demonstrated issues with clogging and buildup when using wettable powders. |
| Active Ingredient | N/A |
| Application Equipment | Gloves, Respirator Mask, Spray Rig |
| Mix Rate | Maruyama MSD41 Piston Pump comes ready to use. |
| Use Sites | Outdoors |
| Yield | Maruyama MSD41 Piston Pump can be used for one spray rig. |
| Shelf Life | Maruyama MSD41 Piston Pump will last as long as its stored in a clean and moisture free location. |
| Comparable Products | Hypro 5210c Piston Pump |
| Children or pets? | No |
| Property Characteristics | None |
| Availability | Online |
| Restricted Use | No |
| Brand | MARUYAMA |
| Keith's Pro Tips | "To keep your Maruyama MSD41 piston pump performing well, you will need to set a routine maintenance schedule and regularly check the oil levels. This is a must for the longevity of the pump." |
| Product Drawbacks | Routine maintenance is a must for continued performance of the MSD41. You will have to regularly check the oil level on the pump. Also the pump has demonstrated issues with clogging and buildup when using wettable powders. |
| Target Pests | Flies, flying pests, and crawling insects. |
| Application Equipment | Gloves, Respirator Mask, Spray Rig |
| Application Methods | Broadcast Spray |
| Active Ingredient | N/A |
| Product Type | Equipment |
| Formulation | Parts/Unit |
| Application Rate | Maruyama MSD41 Piston Pump comes ready to use. |
| Shelf Life | Maruyama MSD41 Piston Pump will last as long as its stored in a clean and moisture free location. |
| Yield | Maruyama MSD41 Piston Pump can be used for one spray rig. |
| Use Sites | Outdoors |
| Time to Kill | Maruyama MSD41 Piston Pump does not eliminate pests and works instantly once attached. |
| Comparable Products | Hypro 5210c Piston Pump |
